If you’re specifying doors for a warehouse, manufacturing plant, cold storage facility, or distribution centre, you’ll face this decision: sectional overhead door or rolling steel door? Both are standard in commercial and industrial applications. Both do the job. But they’re not interchangeable — and choosing the wrong one costs you in clearance, energy, maintenance, and long-term reliability.
This guide breaks down exactly how they compare, where each one wins, and how to choose based on your actual operation.
What Is a Sectional Overhead Door?
A sectional door is made up of horizontal steel panels (sections) connected by hinges. When the door opens, it travels up and back along tracks mounted to the ceiling. The door rides along a curved track — vertical at the opening, transitioning to horizontal overhead.
Sectional doors are the most common type in commercial warehouses, cold storage, and light industrial facilities across Canada. They offer strong insulation options, a wide range of sizes, and reliable performance in high-traffic environments.
Common applications:
- Temperature-controlled warehouses and cold storage
- Distribution centres with moderate traffic volume
- Manufacturing facilities with standard ceiling heights
- Automotive service bays
- Retail loading areas
What Is a Rolling Steel Door?
A rolling steel door is made of interlocking steel slats that coil up around a barrel mounted above the opening — either in the opening itself (built-in coil) or in a hood above the header. There are no tracks running along the ceiling, which makes rolling steel the go-to choice when overhead space is limited or the ceiling is heavily occupied with utilities.
Rolling steel doors are built for durability and security in high-cycle and high-demand environments. They’re also the required configuration for fire-rated door applications.
Common applications:
- Service doors in industrial plants and maintenance bays
- Fire-rated openings (NFPA 80 compliance)
- Security applications — storage rooms, parking structures
- Facilities with limited headroom or cluttered ceilings
- High-cycle environments: cross-dock, food processing, transit hubs

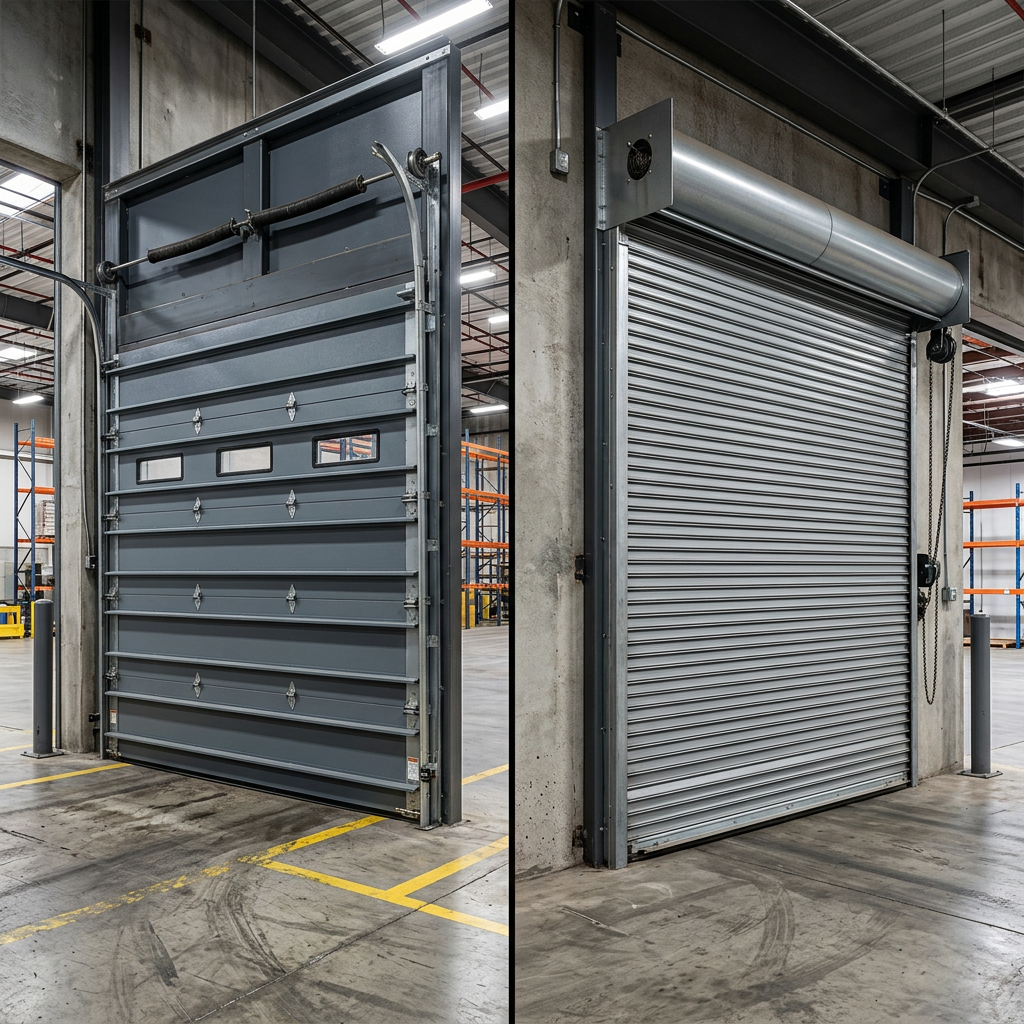

Side-by-Side Comparison
| Feature | Sectional Door | Rolling Steel Door |
|---|---|---|
| Headroom Required | 12–18″ minimum above opening (standard lift) or up to 4″ (high lift) | Coil sits above header — 12–18″ typical; low-headroom models available |
| Insulation | Excellent — polyurethane foam filled panels available up to R-17 | Limited — insulated slat models available but lower R-value than sectional |
| Fire Rating | Not available as a fire door | Available in fire-rated configurations (NFPA 80) |
| Cycle Speed | Standard: 12–18 inches/sec — suitable for most operations | Standard: similar to sectional; high-speed rolling steel available |
| Ceiling Space Used | Tracks run along ceiling — can conflict with racking, HVAC, sprinklers | No ceiling tracks — coil sits in or above the header |
| Opening Width Range | Up to ~30 ft wide standard | Up to 40+ ft with structural header — better for very wide openings |
| Impact Resistance | Good — panel damage can be sectional (replace one panel) | Excellent — steel slats absorb impact; individual slat replacement |
| Security | Good — steel panels, solid construction | Superior — continuous steel curtain, harder to defeat |
| Maintenance | Springs, cables, rollers, hinges, bottom weatherseal | Springs, curtain, barrel, guides, bottom bar — fewer moving parts overall |
| Typical Installed Cost | Generally lower for standard applications | Comparable to sectional; fire-rated models carry a premium |
| Best for Cold Climates | Yes — insulated sectional doors are the gold standard for cold storage | Possible with insulated slats — but not a direct competitor to sectional |
The Real Deciding Factors
1. Do you need temperature control?
If your facility is heated, refrigerated, or you’re fighting Ontario winters, a sectional door is almost always the better choice. Polyurethane-filled sectional panels deliver R-values up to 17, with full perimeter seals and bottom weatherstripping. A standard rolling steel door simply can’t match that thermal performance. You can get insulated slat rolling steel, but it’s a compromise — not the right tool for serious cold storage.
2. How much overhead space do you have?
If your ceiling is packed with racking, sprinkler lines, conduit, or HVAC ductwork, rolling steel wins by default. There are no tracks to compete with overhead infrastructure. For a facility that’s already built and full, retrofitting a sectional door often means rerouting utilities — rolling steel avoids that entirely.
3. Is it a fire door opening?
Fire-rated rolling steel doors are the code-compliant solution for fire door openings under NFPA 80 and the Ontario Fire Code. Sectional doors are not available in fire-rated configurations. If your architect or fire marshal has designated an opening as requiring a fire door, that decision is made for you — it’s a rolling fire door.
4. How high is your traffic volume?
High-cycle industrial environments — cross-dock facilities, food processing lines, transit terminals — often specify rolling steel for its simpler mechanical profile and long cycle life. That said, high-performance sectional doors are also a strong option here. For very high-speed requirements (>40 cycles/hour), a high-speed rubber or vinyl door may be the better answer than either.
Quick Verdict by Application
Choose Sectional When…
- Temperature retention is a priority
- You want the best insulation value
- Standard headroom is available
- It’s a loading dock door
- You want a wider range of window/panel options
Choose Rolling Steel When…
- Overhead space is limited or occupied
- It’s a fire-rated opening
- Maximum security is needed
- Wide openings (30 ft+) are required
- High-cycle industrial environment
