Navigating standard door sizes in Canada for commercial properties can be challenging, especially with the industry’s mix of Imperial and metric measurements. Getting these dimensions right is the first step to ensuring your facility is safe, efficient, and compliant with national and provincial codes. This guide will walk you through everything you need to know, from common overhead and loading dock door sizes to the critical building codes that govern them. You’ll learn how to measure openings accurately and decide between standard and custom solutions for your business.
Decoding Commercial Door Dimensions in Canada
Choosing the right door for a commercial building is about much more than just measuring an opening. It’s a decision that directly affects daily workflow, safety protocols, and even energy costs. This guide is a complete reference for understanding the standard commercial door sizes used across Canada, with a sharp focus on the dimensions that matter for industrial and commercial applications. As respected partners in the industry, our goal is to provide reliable service and information to help facility managers, contractors, and business owners make confident decisions.
We’ll break down everything you need to know, including:
- Common Dimensions: A detailed look at the standard sizes for overhead, loading dock, and other commercial doors.
- Measurement Systems: How to navigate both the Imperial (feet/inches) and metric (metres/millimetres) systems used in Canadian construction.
- Compliance and Safety: Key insights into the National Building Code of Canada (NBCC) and provincial accessibility rules that shape door specifications.
The Imperial and Metric Mix
A unique aspect of the Canadian construction industry is its continued reliance on the Imperial system for many building components, especially doors. While Canada officially adopted the metric system decades ago, feet and inches remain the industry standard for door sizing. This practice helps maintain consistency between suppliers, manufacturers, and installation experts.
This dual-system reality means you might see technical specifications listed in metric, but on-site conversations and purchase orders will almost certainly be in Imperial. For example, a spec sheet might list a door as 3048 mm x 3048 mm, but in a real-world setting, like a warehouse in Mississauga, the facility manager and technician will simply call it a “10 by 10.” Our job is to help you manage both systems, ensuring your commercial door installation project runs smoothly. Whether you’re planning a new build or retrofitting an existing space with fire-rated doors or standard sectional overhead doors, mastering these dimensions is essential.

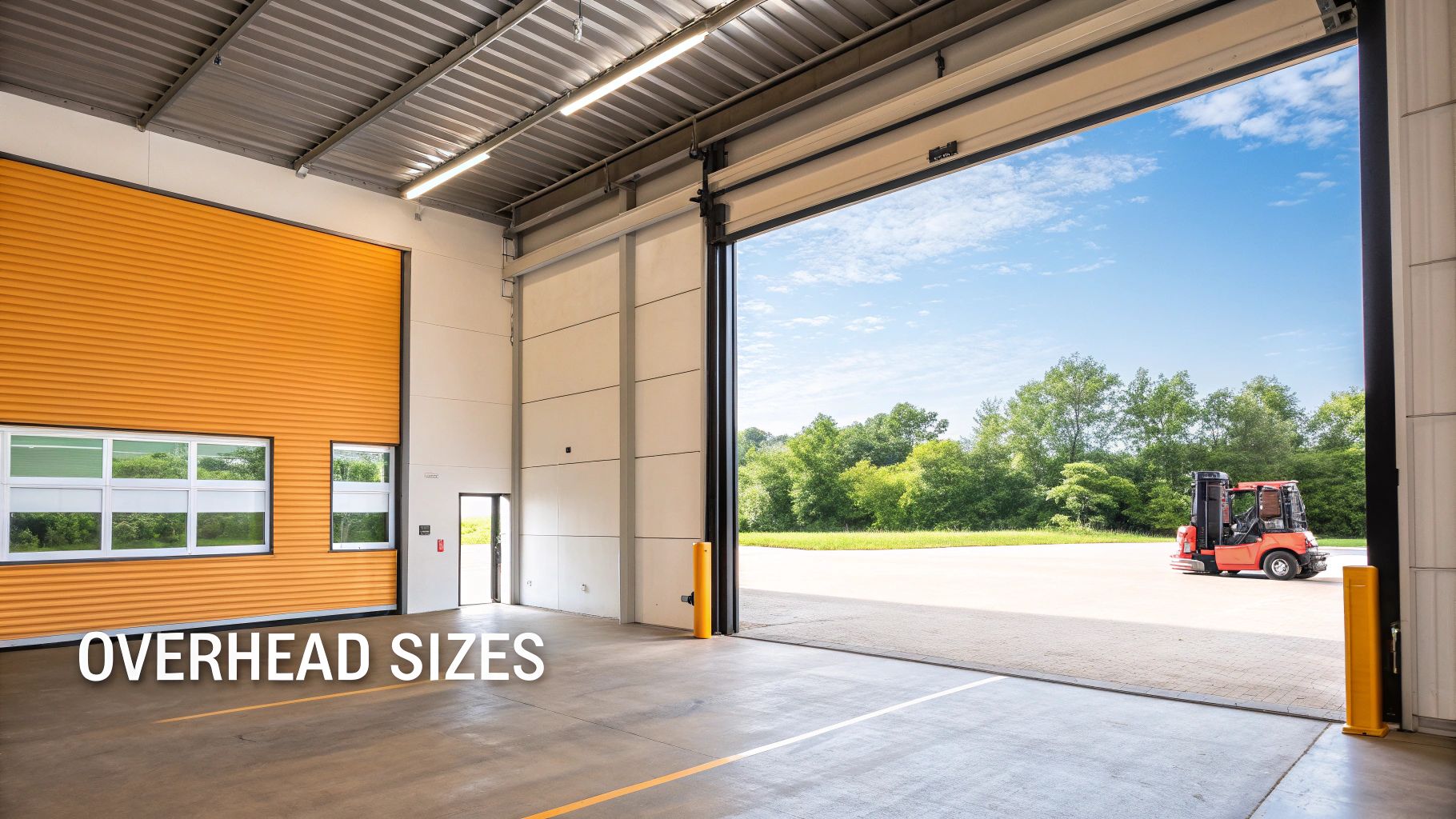

Understanding Standard Overhead and Sectional Door Sizes
Overhead and sectional doors are the workhorses of countless Canadian warehouses, service bays, and distribution centres. Selecting the right dimensions for these doors is critical for operational efficiency and safety. While custom sizes are always an option, certain standard dimensions have become the industry norm, designed to accommodate common commercial vehicles and equipment.
When we discuss door sizes, we typically refer to the rough opening—a simple term for the unfinished wall space needed to properly install the door, its track system, and all hardware. For instance, a door listed as 10′ x 10′ (3048 mm x 3048 mm) requires a rough opening of that exact size. The actual door panel will be slightly larger to create a weatherproof seal when closed.
Key Factors Influencing Size Selection
Choosing the right standard door size involves more than filling a hole in the wall; it depends on the practical, daily needs of your operation. The primary consideration is the type of vehicles that will use the bay. Whether it’s delivery vans or full-size transport trucks, the vehicle’s height and width will dictate the necessary door dimensions.
For example, a logistics company in Calgary will need loading dock doors at least 10 feet high to accommodate standard semi-trailers, while an auto repair shop in Toronto might only need an 8-foot high door for service bays designed for passenger cars and vans. Internal traffic flow, especially forklifts, is just as important. A door must be wide and high enough to allow safe passage without risking a collision with the door frame or tracks. For facilities that move heavy equipment, larger standard sizes like 16′ x 16′ (4877 mm x 4877 mm) often serve as the baseline to ensure ample clearance. While a commercial context is different, understanding the typical dimensions of a 3-car garage can offer useful perspective on space planning for smaller overhead doors.
When outfitting a commercial or industrial space, having a quick reference for standard overhead door sizes is invaluable. The table below outlines the most common dimensions used in Canada, along with their typical applications.
Standard Commercial Overhead Door Sizes (Imperial & Metric)
| Application | Standard Imperial Size (Width x Height) | Metric Equivalent (mm x mm) | Typical Use Case |
|---|---|---|---|
| Light Commercial/Van Access | 8′ x 8′ | 2438 x 2438 | Small delivery vans, utility vehicles, single-car service bays. |
| Standard Loading Dock (Single) | 9′ x 10′ | 2743 x 3048 | Standard height loading docks for straight trucks and some semi-trailers. |
| High-Cube/Full-Size Truck | 10′ x 10′ | 3048 x 3048 | Accommodates full-size semi-trailers, common for distribution centres. |
| Small Equipment/Forklift | 12′ x 12′ | 3658 x 3658 | Service bays for larger vehicles, municipal trucks, or high-traffic forklift areas. |
| Large Equipment Access | 14′ x 14′ | 4267 x 4267 | Bays for agricultural equipment, construction vehicles, and fire trucks. |
| Oversized Vehicle/Industrial | 16′ x 16′ | 4877 x 4877 | Heavy industrial applications, aircraft hangars, large machinery access. |
This table provides a solid starting point for planning, but it’s always best to measure your specific vehicles and equipment to be certain.
Headroom and Side-Room Clearances
Beyond the opening itself, two measurements are non-negotiable for a successful installation: headroom and side-room. In simple terms:
- Headroom: This is the clear vertical space from the top of the door opening to the ceiling or the first obstruction (like pipes or support beams). A standard track system usually needs at least 15-18 inches of headroom to operate.
- Side-room: This is the space on either side of the door opening needed to mount the vertical tracks.
These clearances determine the type of track system you can install—whether it’s a standard lift, high-lift, or vertical lift. An incorrect assessment can lead to expensive project delays or a door that simply won’t function. For a closer look at the options, you can explore our range of durable sectional overhead doors to see how different models accommodate various clearance needs.
Ultimately, selecting the right standard size is about balancing operational needs with the physical constraints of your building. Getting these measurements right ensures a smooth installation and years of reliable service.

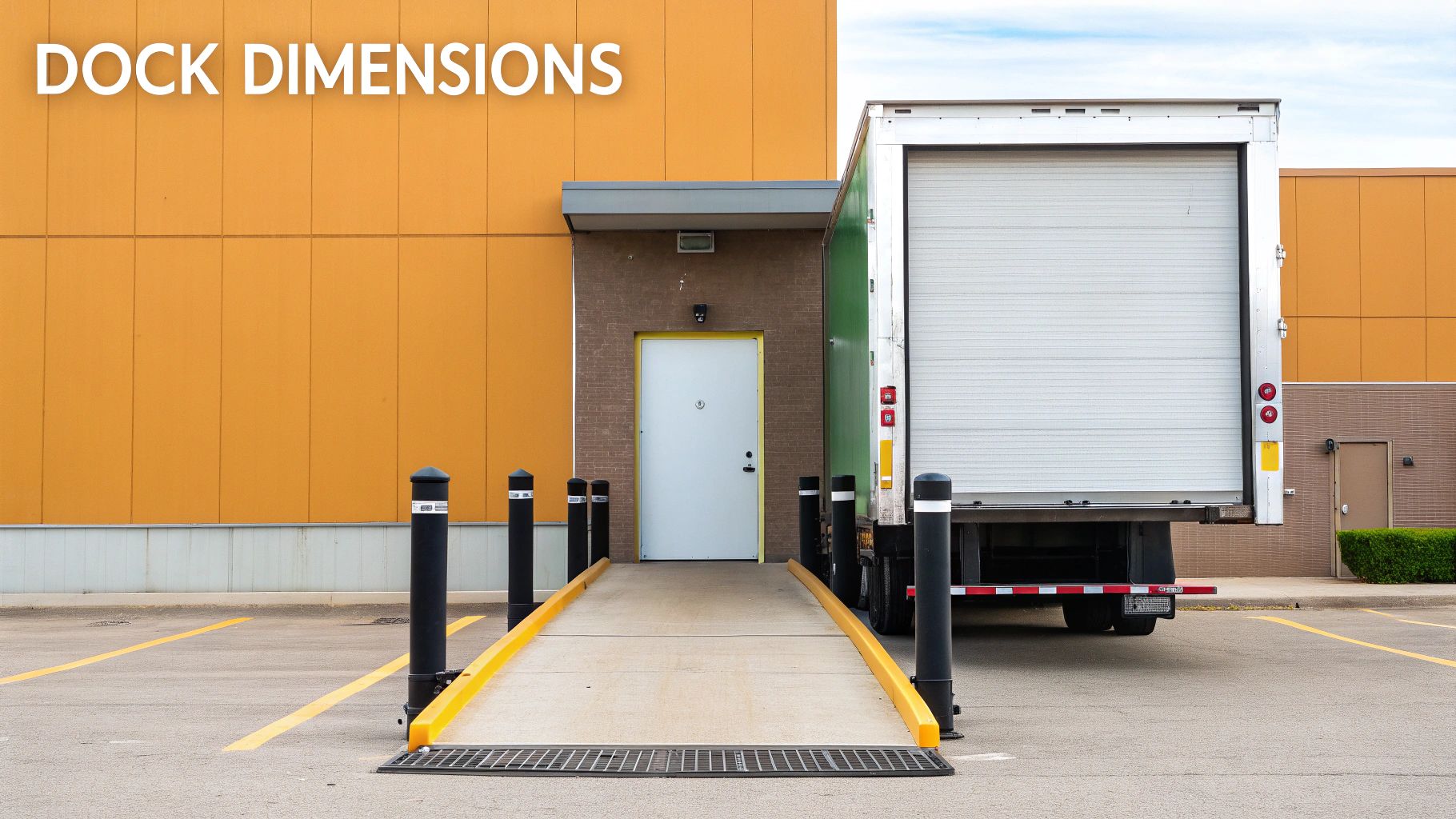

Navigating Loading Dock Door Dimensions
Loading dock doors are the critical link in a supply chain, and their dimensions are key to keeping logistics running smoothly. Unlike general-purpose overhead doors, loading dock doors are specifically designed to align with the standard widths and heights of transport trucks and trailers. This alignment is essential for creating a safe, efficient, and weatherproof loading environment.
When it comes to standard door sizes in Canada, the most common dimensions for loading docks are 8′ W x 10′ H, 9′ W x 10′ H, and 10′ W x 10′ H. These sizes provide the clearance trailers need to back up squarely to the dock, allowing for a tight seal and helping prevent product damage or employee injuries during loading and unloading.
Choosing the Right Standard Dock Door Size
So, which standard size is right for you? The best fit depends on a few practical factors. First, consider the type of goods you handle and the equipment you use. For instance, a facility that frequently moves oversized or double-stacked pallets will benefit from a wider 10-foot door to minimize the risk of products striking the door frame. A food distribution centre will prioritize a perfect seal to maintain temperature control, making the integration with dock equipment paramount.
Your dock’s physical setup is just as important. A few key things to think about include:
- Dock Type: The style of your dock matters. A flush dock (where the building wall is even with the driveway) interacts with trucks differently than an enclosed dock, influencing your door choice.
- Dock Equipment: The door must work seamlessly with your dock levelers and dock shelters. This integration is crucial for creating an effective seal that protects goods from the elements and maintains your building’s climate control. Our guide explains how to choose the right dock leveler for your loading dock and how it fits into the bigger picture.
The Importance of the Rough Opening
As with any door installation, understanding the rough opening is vital. This is the clear, structural opening in the wall where the door will be installed. A precise opening is non-negotiable for the door’s structural integrity and smooth operation. For example, to install a standard 10’x10′ overhead door, the framed opening must be exactly 10 feet wide by 10 feet high. Getting these measurements right from the start prevents costly delays and operational headaches.
Meeting Canadian Building Codes and Accessibility Standards
Selecting the right commercial door size isn’t just about fit; it’s a matter of legal compliance, safety, and functionality. In Canada, commercial door installations are governed by a framework of regulations designed to protect people and property. Understanding these rules isn’t just good practice—it’s the law.
The foundation for these regulations is the National Building Code of Canada (NBCC), which sets minimum standards for everything from structural integrity to fire safety. Provincial and territorial authorities then adopt these national guidelines, often adding their own specific requirements. For instance, facilities in Ontario must also adhere to the Accessibility for Ontarians with Disabilities Act (AODA), which has strict, enforceable standards for door accessibility.
Navigating Accessibility Requirements
A major focus of these codes is ensuring barrier-free access for everyone. For commercial personnel doors—those used for public entry, washrooms, and emergency escape routes—this means specific size requirements. The most important of these is the minimum clear width.
The clear width is the actual, usable space available for passage when the door is open. In most Canadian jurisdictions, the standard is:
- Minimum Clear Width: 32 inches (810 mm). This measurement is non-negotiable, as it ensures enough room for people using wheelchairs or other mobility aids to pass through easily.
Here’s a critical detail: clear width is measured from the face of the door (when swung open to 90 degrees) to the opposite door jamb. A 36-inch door panel does not provide 36 inches of clear space because the door’s thickness and hardware reduce the opening. This is a key detail that compliance inspectors check.
Height, Thresholds, and Egress Paths
Codes also specify other crucial dimensions. The standard clear height for accessible doorways is typically 80 inches (2030 mm), providing ample vertical clearance. Thresholds must be kept low and bevelled to prevent tripping hazards and allow smooth passage for wheeled equipment and mobility devices.
These rules are even stricter for doors that are part of an emergency egress path (an exit route). In a fire or other emergency, the size and operation of these doors must allow for rapid and safe evacuation. This is where specialized hardware and specific door types, like properly installed fire-rated doors, become absolutely essential for meeting code. For a deeper dive into managing legal requirements, this guide on understanding risk and compliance in construction is a valuable resource.
While these regulations primarily target personnel doors, the core principles of safety and compliance apply to every access point in a commercial building.
How to Measure a Commercial Door Opening Accurately
Getting the right commercial door starts with getting the right measurements. Precise, accurate numbers are the foundation of a seamless installation, preventing costly mistakes and frustrating delays. This guide breaks down exactly how to measure your commercial door opening to ensure a perfect fit.
First, you’ll need a quality tape measure. The goal is to capture the dimensions of the rough opening—the clear, finished space where the door and its frame will be installed. For both width and height, you should take three separate measurements to account for any slight inconsistencies in the wall or floor, which are surprisingly common.
Taking the Core Measurements
Accuracy is all about consistency. Follow these simple steps to get the numbers you need:
- Measure the Width:
- Take your first measurement across the top of the opening.
- Take your second measurement across the middle of the opening.
- Take a final measurement across the bottom of the opening.
- Record the smallest of the three numbers. This is your usable width.
- Measure the Height:
- Measure the height on the left side of the opening, from the finished floor to the top.
- Measure again in the centre of the opening.
- Finally, measure the height on the right side.
- Record the smallest of the three heights. This ensures the door won’t scrape on a high point in the floor.
Using the smallest measurement for both width and height is a crucial industry practice. It guarantees that the door and its tracks will fit comfortably within the opening, even if the frame isn’t perfectly square.
Don’t Forget Headroom and Side-Room
Beyond the opening, two other clearances are non-negotiable for any sectional or overhead door installation. Miscalculating these is one of the most common and expensive mistakes.
- Headroom: This is the clear, unobstructed space from the top of the door opening up to the ceiling or the lowest-hanging object (like a pipe, ductwork, or support beam). This measurement determines which track system will work for your door.
- Side-room: This is the clear space on the left and right sides of the opening, which is essential for mounting the vertical tracks the door runs on.
If you’re unsure about these clearances, it’s best to call a professional. Wilcox technicians can perform a precise on-site assessment to get it right. You can schedule a service inspection for a definitive measurement and a reliable recommendation.

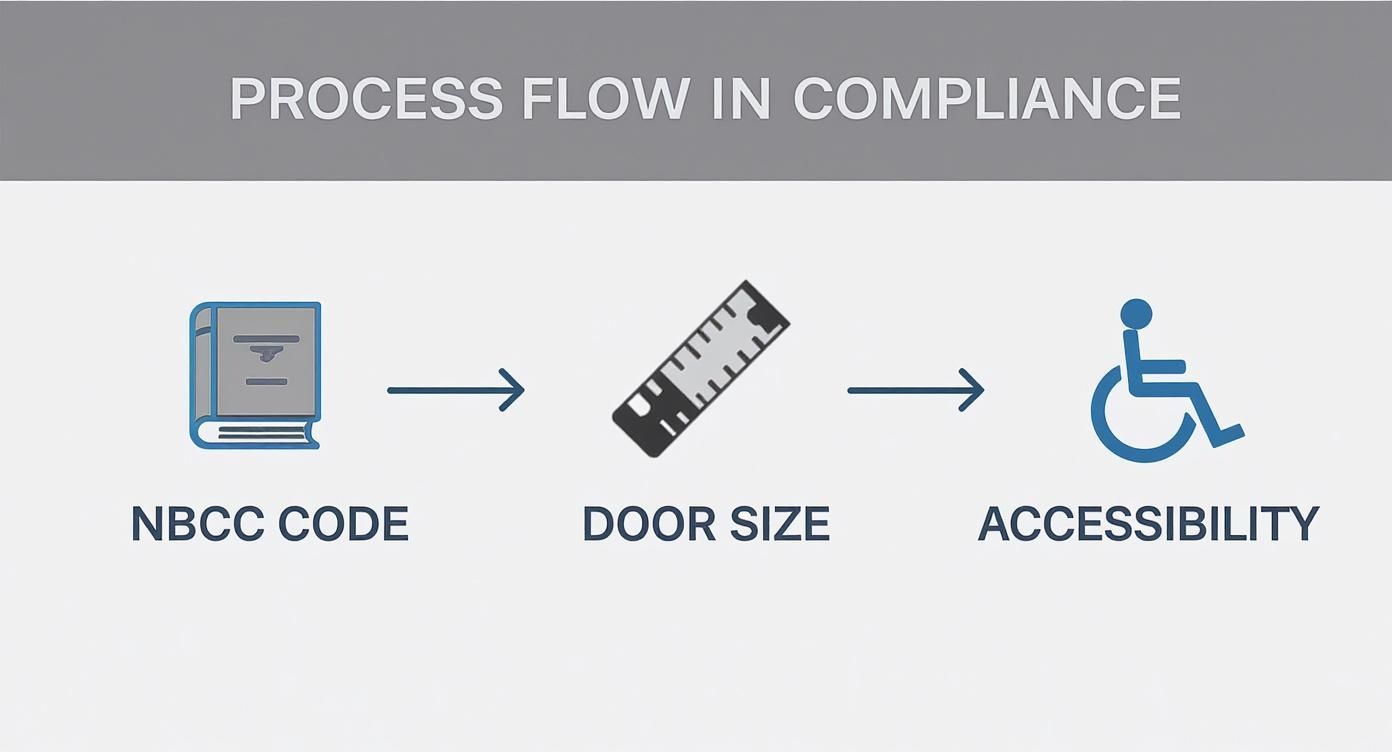

This entire process—from checking codes to measuring—is interconnected, as the infographic below illustrates.
As you can see, accurate measurements are not just about fit; they are a critical step in ensuring your door meets all legal and accessibility standards. Precise dimensions confirm that your facility provides the required clear opening width and height for full compliance.
Deciding Between Standard and Custom Door Sizes
While standard door sizes in Canada work for most commercial facilities, some situations require a custom-built solution. A custom door becomes the best option when off-the-shelf dimensions simply won’t work for your building or operational needs.
This typically occurs in a few key scenarios. Retrofitting older buildings with non-standard wall openings is a common example. Another is when a facility needs to move oversized equipment or fully assembled products that won’t fit through a standard opening. Sometimes, architectural design requires unique door dimensions to achieve a specific aesthetic.
Weighing the Pros and Cons
Choosing a custom door is a trade-off. The two biggest factors are typically cost and lead time. Custom-fabricated doors have a higher upfront price and take longer to manufacture than their standard-sized counterparts.
However, the long-term benefits can easily justify the initial investment. A custom door provides:
- Enhanced Functionality: It’s built to fit your exact operational needs, improving traffic flow and eliminating bottlenecks.
- Improved Safety: A correctly sized door prevents accidents from tight squeezes, protecting both personnel and expensive equipment.
- Peak Operational Efficiency: The right door eliminates clumsy workarounds and streamlines processes, boosting daily productivity.
A Real-World Example
Imagine a heavy manufacturing plant that builds large industrial turbines. A standard 16′ x 16′ overhead door might be the largest “standard” size available, but it may not be wide enough to safely move a finished turbine out for shipping. Squeezing it through could risk damaging the product and the doorframe, leading to costly repairs and production delays.
In this case, investing in a custom-sized 20-foot-wide sectional overhead door isn’t a luxury; it’s a core operational necessity. The higher initial cost is quickly offset by preventing a single instance of product damage and keeping the shipping process efficient.
Ultimately, the choice between standard and custom comes down to one question: does a standard size support your facility’s long-term safety and efficiency? For situations that fall outside the norm, Wilcox is your expert partner. We specialize in designing and installing custom solutions—from specialized fire-rated doors to uniquely sized dock systems—that solve complex challenges. Our team ensures your door is a perfect fit not just for the opening, but for your business. For a professional assessment of your unique needs, contact our team.
Your Commercial Door Size Questions Answered
To help you find information quickly, we’ve answered the most common questions we hear about standard door sizes in Canada for commercial applications.
What Is the Most Common Commercial Loading Dock Door Size in Canada?
The sizes you’ll see most often for loading dock doors are 8 feet wide by 10 feet high and 9 feet wide by 10 feet high. These dimensions are ideal for the vast majority of transport trucks, allowing for an effective seal with dock shelters, which is crucial for safe and efficient loading and unloading operations.
Are Nominal Door Sizes the Same as Actual Door Sizes?
No, and this is an important distinction. A nominal size, like an 8′ x 10′ door, refers to the finished wall opening the door is designed to fit. The actual door panel itself will be slightly different to accommodate track hardware, ensure proper clearance, and allow for smooth movement. Always clarify with your provider whether you are discussing nominal or actual measurements to avoid confusion.
How Much Headroom Is Required for a Standard Commercial Overhead Door?
The required headroom depends on the door’s size and the type of track lift system used. For a standard lift track, you typically need about 15 to 18 inches of clearance above the door opening. If your facility has limited overhead space, solutions like low-headroom, high-lift, or vertical lift tracks are available, each with specific clearance requirements. A professional on-site assessment by a Wilcox technician is the best way to determine the right fit for your sectional overhead doors.
Why Do Imperial Measurements Persist for Doors in Canada?
Despite Canada’s official use of the metric system, the construction and building supply industries have largely retained the Imperial system (feet and inches) for practical reasons. Using feet and inches ensures consistency in manufacturing, supply chains, and on-site communication. Since the industry has strong ties to the broader North American market where Imperial is standard, it simplifies processes for contractors, suppliers, and installers.
