Rolling Steel Service Door Replacement — Municipal Recreation Facility, Stoney Creek

The Challenge

Municipal recreation facilities in Ontario operate on tight, community-facing schedules. Ice time is booked months in advance. Public skating sessions, league games, and team practices fill every available slot. When a rolling steel service door starts failing at a facility like this, the replacement can’t happen on a contractor’s preferred timeline — it has to happen on the facility’s terms, or not at all.

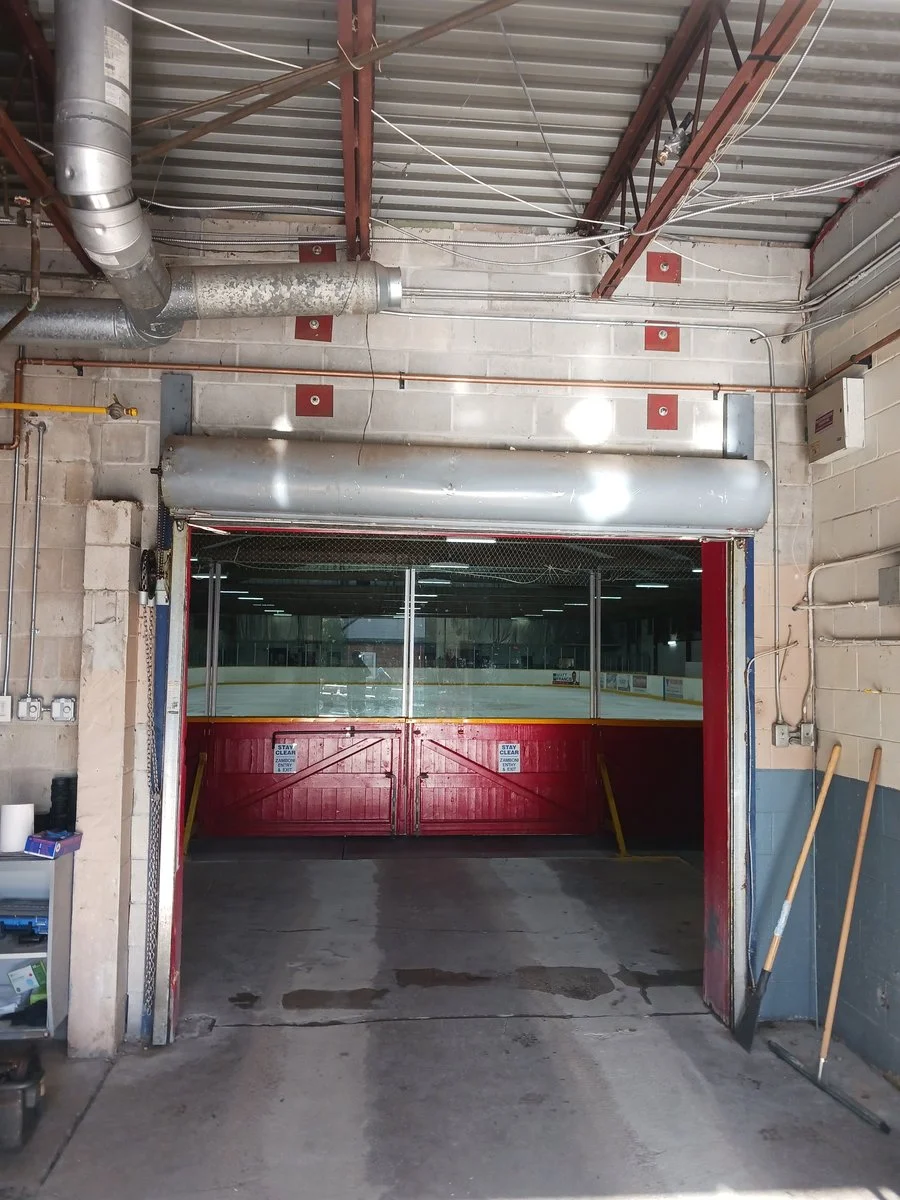

This arena in Stoney Creek had a rolling steel service door at a side access point used by maintenance and operations staff that had deteriorated past the point of reliable function. The curtain was no longer closing flush, the spring counterbalance was losing tension, and the hardware was showing the kind of accumulated wear that precedes a full mechanical failure. A door that fails mid-season at a municipal arena doesn’t just create an inconvenience — it creates an unsecured access point and a facilities management problem that has to be resolved immediately, on whatever day it chooses to happen.

The facility manager’s primary concern was simple: get the door replaced without touching a single booked ice session. That meant planning the installation window carefully, confirming the scope could be executed within that window, and arriving prepared to complete the work in full — removal, installation, and test cycle — before the building returned to programmed use.

The Solution

Wilcox Door Service assessed the opening, confirmed the scope, and scheduled the installation during a maintenance window that fell outside the arena’s programmed ice time.

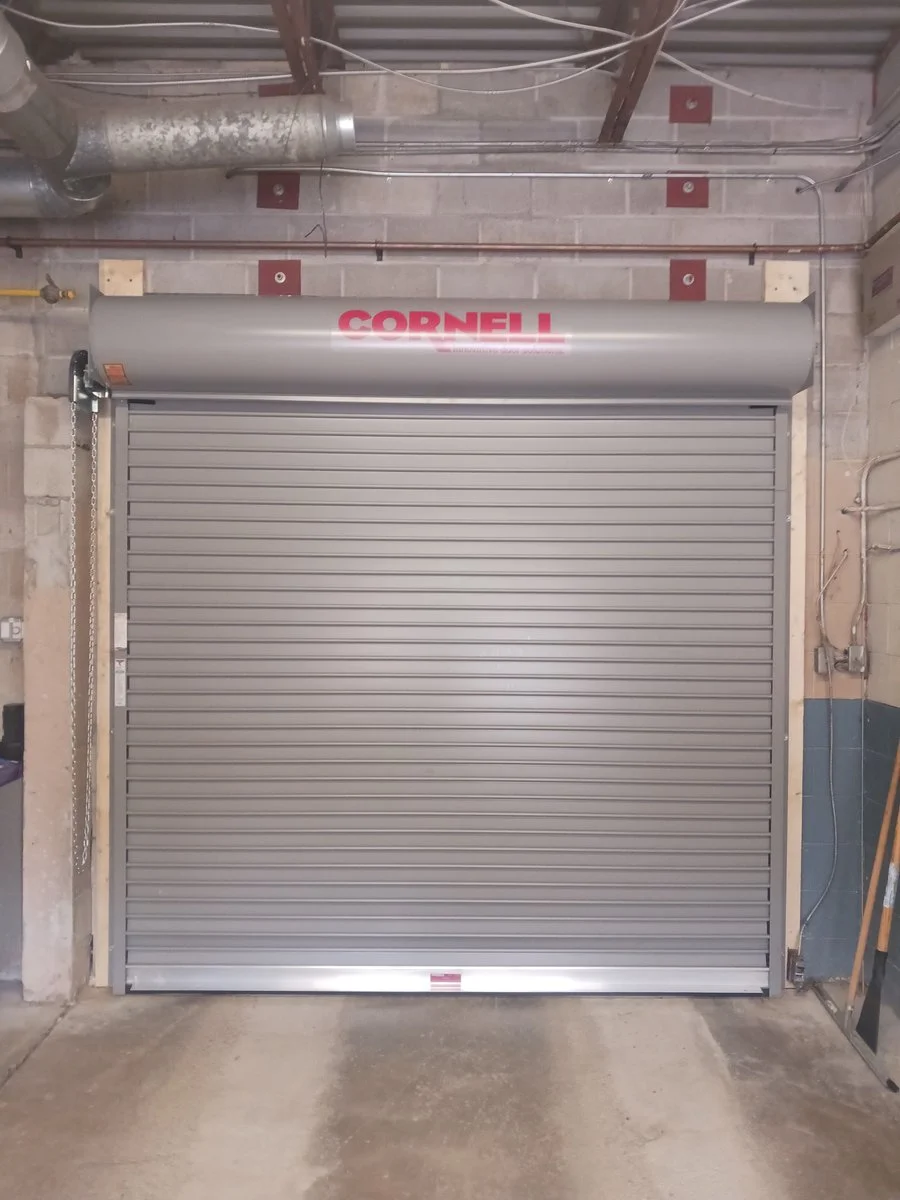

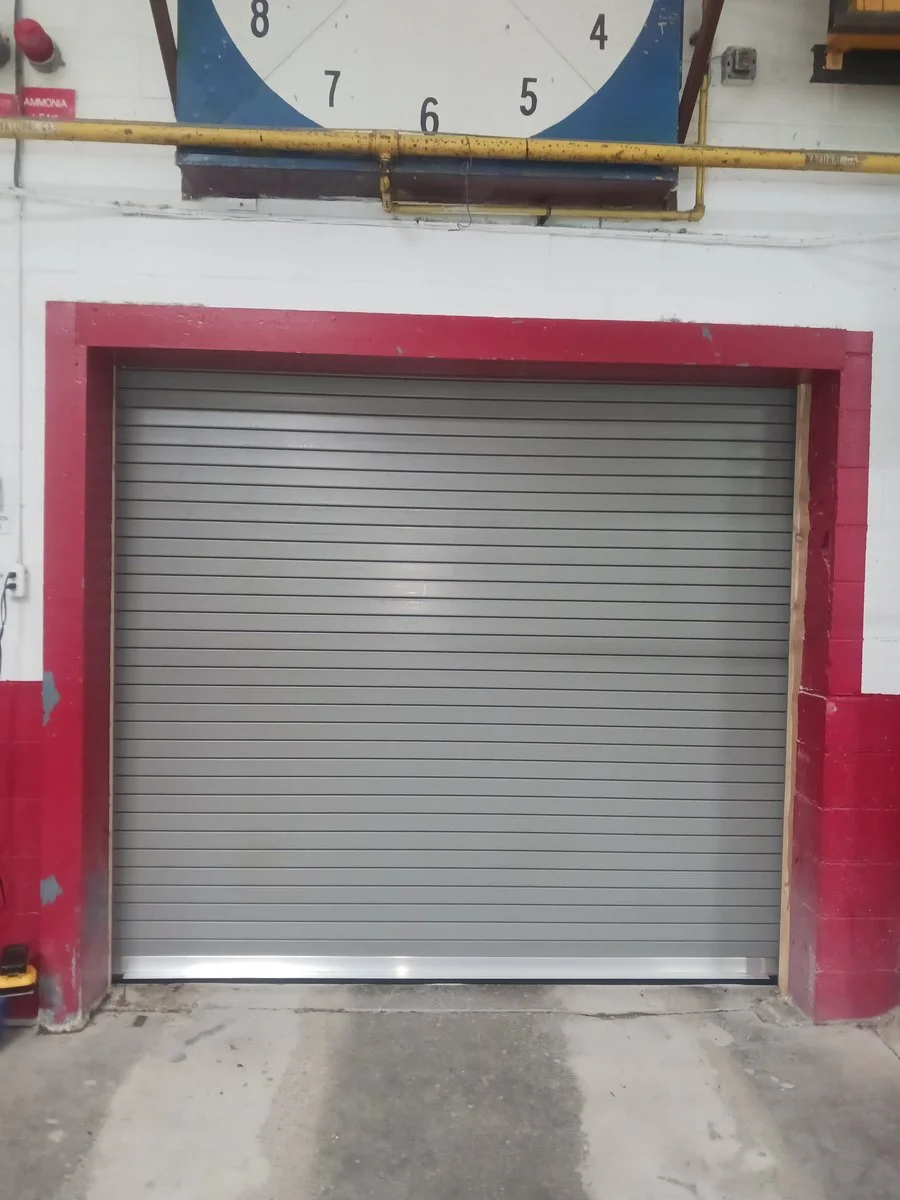

The existing door, curtain, hood assembly, and all associated hardware were fully removed and disposed of as part of the scope. The opening was prepped and the new ESD-10 rolling steel service door was supplied and installed complete — 22GA flat non-insulated slats, manual chain hoist operation, exterior-mounted hood, and bottom weatherseal. Colour was selected to integrate with the facility exterior.

Manual chain hoist operation was the correct specification for this application. The door is used periodically by maintenance and operations staff — not a high-cycle throughput opening. A chain hoist provides reliable, mechanically simple operation with minimal ongoing maintenance requirements.

The door was cycled through its full range of travel, tension was verified, and the installation was confirmed operational before the crew left the site. No return visit. No punch list.

Outcomes

The arena’s rolling steel service door is operating correctly at the maintenance access point. The ESD-10’s weather-shielded hood protects the spring and coil mechanism from Ontario’s climate — the ice-loading, freeze-thaw cycling, and wind exposure that degrade unshielded exterior door hardware over time.

No arena programming was affected. The replacement was planned and executed within the facility’s own schedule, which is how a municipal rolling steel door replacement should be managed.

The door has operated without issue since installation.
