The Challenge

Quonset hut structures present a unique set of challenges for overhead door installations. The curved metal profile of the building doesn’t provide the flat, plumb wall surfaces that standard door frame installation depends on — anchoring to a curved Quonset shell requires custom framing and a structural approach that accounts for the building’s geometry rather than assuming a conventional masonry or steel frame opening. The opening at this Ontario facility also spanned a wide entry point, requiring a door capable of covering a large opening while standing up to the exposed conditions typical of rural and semi-industrial Quonset locations.

Long-term security and minimal maintenance were the customer’s primary requirements — the facility needed a door that would perform reliably in an exposed environment without becoming a recurring maintenance item.

The Solution

Wilcox Door Service installed a commercial rolling steel door tailored to the Quonset structure’s requirements. The installation required custom framing at the opening to provide the flat, plumb mounting surfaces needed for the door’s guide rails and hood assembly — a critical step that bridges the gap between the curved building profile and the rectangular door system. Without this framing, rolling steel door installations into curved-wall structures fail prematurely from misalignment and uneven load distribution on the curtain guides.

The steel curtain coils into a compact hood above the opening, preserving the interior clearance of the Quonset structure and protecting the coil mechanism and spring assembly from the weather exposure of the site. The spring counterbalance was sized for the door’s dimensions, and the curtain gauge was specified for the security and weather resistance requirements of an exposed semi-industrial location.

Outcomes

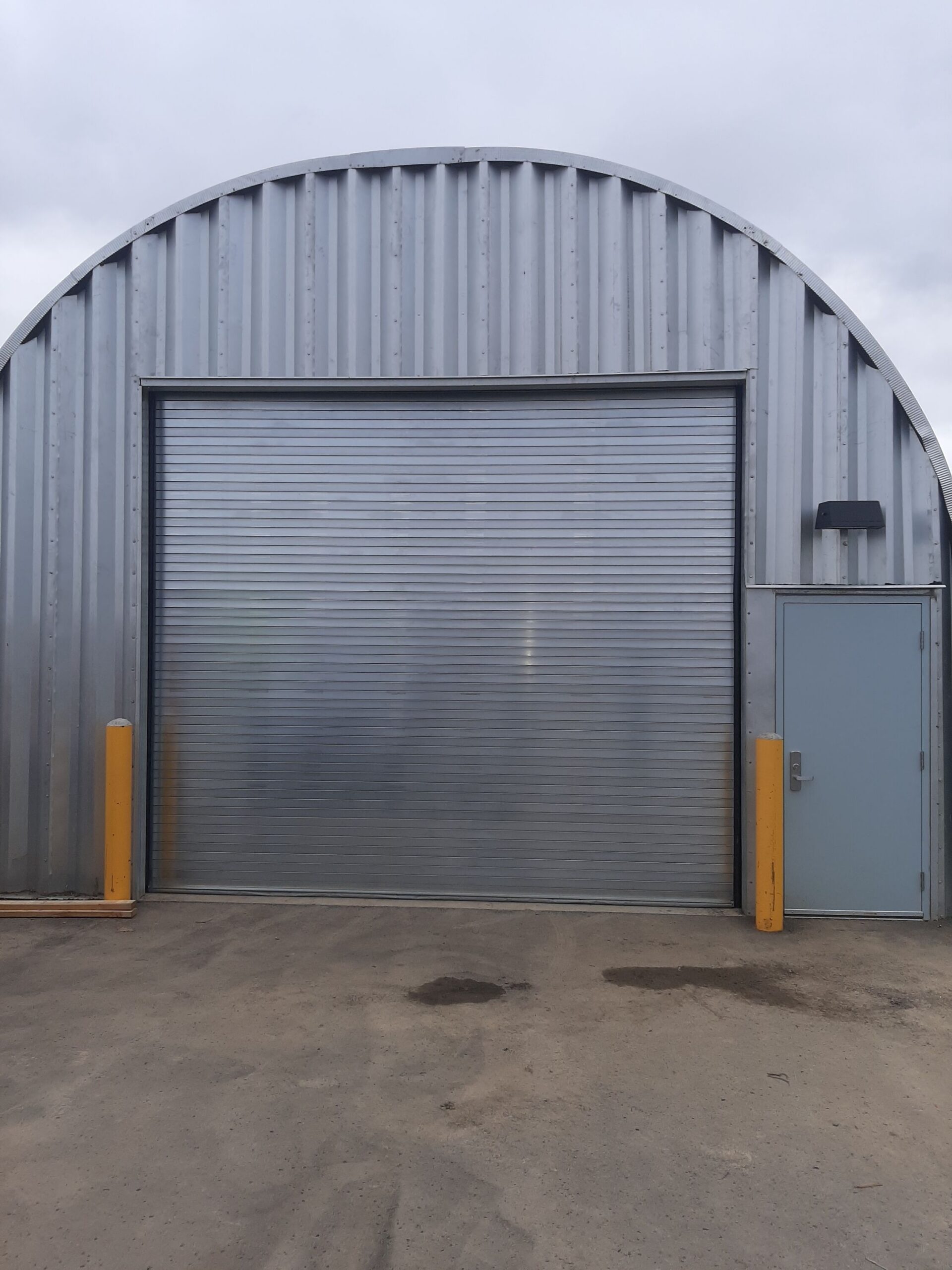

The rolling steel door was successfully installed in the Quonset structure’s curved wall opening, with custom framing providing the correct mounting geometry for a properly aligned, securely anchored installation. The door provides reliable security and weather protection at the main entry point, operates smoothly within the Quonset’s interior clearance envelope, and has held up to the exposed conditions of the site without the maintenance issues that a misaligned or improperly framed installation would have generated. The customer has the low-maintenance, secure door they needed in a building type that required a non-standard installation approach.
