Understanding fire door ratings is critical for the safety and compliance of your commercial facility. This guide will explain what the numbers and letters on a fire door label mean, how these ratings are tested and certified, and how to ensure your building meets Canadian fire code requirements. You will learn the practical steps to keep your facility safe, compliant, and always ready for an inspection.
What Fire Door Ratings Mean For Your Facility
For any facility manager, building owner, or contractor, getting a handle on fire door ratings is non-negotiable. These ratings—often seen as numbers like 20, 45, 60, 90, or 180 minutes—tell you precisely how long a door assembly is designed to resist fire and smoke. They are mandatory requirements under Canadian building codes, engineered to provide crucial time for safe evacuation and to limit property damage.
These ratings are far more than just numbers on a label; they represent a complete, tested life-safety system. This system is a core part of your building's fire protection strategy, known as compartmentalization. Think of your facility as being divided into secure zones by fire-rated walls. The fire doors act as the gateways between these zones, designed to contain a fire to its area of origin.
For example, in a busy loading dock area adjacent to administrative offices, a correctly rated fire door can be the difference between a contained incident and a catastrophic loss. The door's rating determines its ability to hold back flames, heat, and smoke, protecting escape routes and giving first responders the time they need to manage the situation effectively.
Why Ratings Apply to the Entire Assembly, Not Just the Door
A common misunderstanding is that the fire rating belongs only to the door slab itself. In reality, a fire door’s rating is only valid if the entire assembly—the door, frame, and hardware—is certified and works together as a single unit. Every component has a critical role to play.
The complete fire door assembly includes:
- The Door: The door slab, which is constructed with a specialized fire-resistant core material.
- The Frame: The steel or wood frame that holds the door must also carry a compatible fire rating.
- The Hardware: Hinges, latches, locks, and closing devices must all be fire-rated to withstand extreme heat and maintain integrity.
- The Seals: Some assemblies require intumescent seals, which are special strips that expand when heated to block gaps, or smoke seals to prevent the spread of toxic smoke.
If a single one of these components is incorrect, damaged, or not certified, the entire assembly is compromised, and its fire rating is void. This is why professional installation and routine inspections are not just recommended—they are essential for ensuring the door will perform as designed when it matters most.
For a deeper look at these components, review our guide to fire-rated door safety and compliance. As your respected partners, we emphasize that reliable service starts with understanding that a fire door is a complete life-safety system where every part must function perfectly.
Decoding the Numbers and Letters on a Fire Door Label
The label on a fire door is its official certification. It’s not just a sticker; it’s a permanent mark from a testing agency that tells you exactly how the door assembly is built to perform under the extreme stress of a fire. Those numbers and letters provide a quick, reliable summary of its capabilities, from how long it can block flames to how well it contains dangerous heat.
Alt text: A metallic ULC certification label on a fire door, detailing specific fire door ratings in minutes and hours.
If a fire door is like a dam built to hold back a flood of fire, the rating on the label tells you exactly how long that dam will hold. This is the cornerstone of all fire door ratings and is essential for protecting escape routes and containing a fire long enough for everyone to evacuate safely.
The Critical Time Rating
The most important detail on the label is the time rating, shown in minutes or hours (e.g., 20, 45, 60, 90, or 180). This number indicates how long the entire door assembly—door, frame, and hardware included—can withstand direct flames under rigorous, controlled test conditions.
A 90-minute rating, for example, means the door is certified to prevent flames from passing through for at least an hour and a half. This containment gives building occupants critical time to evacuate and allows emergency services to manage the situation. It’s what prevents a fire in a facility's maintenance room from spreading to an entire warehouse, turning a manageable incident into a disaster. A solid fire door safety strategy depends on having the correct time rating for each location.
Beyond Time: Temperature Rise and Smoke Control
While stopping flames is the primary job, a fire door's performance is about more than just a time limit. Two other ratings, often found on the label, are vital for protecting lives.
-
Temperature Rise Limit: This rating, typically shown in degrees (e.g., 250°C), indicates the maximum temperature increase allowed on the non-fire side of the door during the rated period. A low temperature rise rating is crucial for doors protecting escape routes like stairwells. It prevents the door from radiating enough heat to ignite materials on the other side or make a hallway impassable, even if no flames are visible.
-
Smoke and Draft Control ("S" Rating): An "S" on the label means the door assembly is also designed to limit the passage of smoke. Since smoke inhalation is the leading cause of fire-related fatalities, this feature is absolutely critical for keeping escape paths clear and filled with breathable air.
A fire door's label is its promise of performance, verified by a third party. If that label is missing, painted over, or unreadable, the door's ability to protect your facility is an unknown liability, and it's automatically considered non-compliant.
Putting It All Together: The Complete Assembly
It’s crucial to remember that the rating on the label applies to the entire door assembly as a single, tested unit. This includes the door slab, the frame it sits in, and every piece of hardware—hinges, latches, and the closing device. Each part must be fire-rated and compatible for the system to perform as designed.
A chain is only as strong as its weakest link. If a maintenance team member swaps a fire-rated hinge for a standard, non-rated one on a 90-minute fire door, the entire rating is instantly voided. This scenario highlights why professional fire door inspection and repair services are so important—they ensure every component meets the strict requirements needed to keep your people and property safe.
Understanding these details empowers you to make smarter decisions and maintain compliance. It’s about seeing that each number and letter represents a layer of protection that works together to save lives. As your partners in safety, we believe that clear knowledge is the foundation of reliable service.
The Standards That Guarantee Fire Door Performance
A fire door's rating is more than just a number—it’s a promise backed by rigorous testing. When you see a certification label, it guarantees the entire door assembly has survived a series of standardized tests designed to simulate the brutal conditions of a real fire. In Canada, these benchmarks are set by respected organizations that ensure every component works together to save lives.
This verification system gives facility managers confidence that their life-safety equipment will perform as expected. Without these standards, a fire rating is just a claim. With them, it's a certified shield you can rely on.
The Key Players in Fire Safety Standards
In Canada, two primary organizations establish the requirements for fire door safety. Their standards form the bedrock of fire protection, influencing everything from how a door is manufactured and tested to how it must be maintained.
-
Underwriters Laboratories of Canada (ULC): This is the most common certification mark you’ll find on fire door labels in Canada. ULC is an independent organization that develops standards and conducts thorough product testing to confirm they meet strict safety requirements. A ULC mark signifies that the door assembly has passed its trial by fire, verified by a trusted third party.
-
National Fire Protection Association (NFPA): While ULC manages the testing and certification, the NFPA writes the rulebook. Specifically, NFPA 80 is the definitive standard for "opening protectives"—the technical term for fire doors, frames, and windows. It provides detailed requirements for their installation, inspection, and maintenance.
Here’s a practical way to understand their roles: ULC conducts the "crash test" to prove a door is safe, while NFPA 80 provides the "owner's manual" that explains how to install and maintain it for a long, reliable service life. Both are essential for ensuring safety.
The Trial by Fire: What Testing Involves
To earn its rating, a fire door assembly can't just look the part. It must prove its durability in a specialized furnace, and the process is intense.
First is the fire endurance test. The complete door assembly—door, frame, hardware, and all—is mounted in a testing wall and subjected to temperatures that can exceed 1,000°C. The objective is to measure how long the door can prevent flames from passing through. If a door is being tested for a 90-minute rating, it must hold back the fire for the full 90 minutes without failure.
A fire door assembly is a complete system. The door, frame, and hardware are all tested together. If any single component fails the test, the entire assembly fails. This is why using only certified, compatible parts during a fire door repair is non-negotiable.
Immediately following the fire endurance test is the punishing hose stream test. While still glowing red-hot, the door is blasted with a high-pressure fire hose. This test simulates the thermal shock and impact force it would experience when firefighters arrive. It’s a pass-fail exam to ensure the door remains structurally intact and doesn't warp or blow out, which would breach the fire separation.
This second test highlights key Canadian fire-rated safety differences. The National Building Code of Canada mandates the hose stream test for assemblies where other jurisdictions might not, ensuring a higher standard of safety. This commitment to thorough testing is why professional fire door installation services are so critical—they ensure these high standards are maintained from the factory to your facility.
Ultimately, these demanding trials guarantee that when an emergency strikes, your fire doors will perform exactly as they were designed to: as a complete, life-saving system.
How to Match Fire Door Ratings to Building Locations
Choosing the right fire door isn’t a matter of preference—it’s a strict requirement defined by building codes. The fundamental rule is this: the fire rating of the door must be appropriate for the fire-resistance rating of the wall it is installed in. A fire-rated wall is only as strong as its weakest point, and that includes the door.
This principle is the foundation of fire compartmentalization, the strategy of containing a fire to its room of origin. For facility managers, matching the door to the wall is non-negotiable for both compliance and the safety of everyone in the building.
Matching the Door to the Wall
The National Building Code of Canada specifies the requirements, but the general concept is that a fire door assembly typically has a rating that is a percentage of the wall's rating. This is because walls are designed for long-term containment, while doors are designed to protect openings for a specific duration to allow for safe egress.
Here’s how this works in common commercial settings:
-
20-Minute (FD20) Doors: Found in 1-hour fire-rated walls, these are common in corridors and as entry doors to offices or hotel rooms. Their primary role is to resist smoke and initial flames, providing occupants with enough time to reach a main exit.
-
45- & 60-Minute (FD45/FD60) Doors: These are used for openings in 1-hour rated walls that separate different uses within a building, such as an office area from a light manufacturing space, or in stairwell enclosures for smaller buildings.
-
90-Minute (FD90) Doors: Essential for protecting critical escape routes, these doors are required for openings in 2-hour rated walls. You will almost always find them protecting stairwells in multi-story buildings and openings to elevator shafts, ensuring these vertical escape paths remain clear and safe.
-
3-Hour (180-Minute) Doors: This is the highest level of protection, reserved for openings in 3- or 4-hour firewalls. These walls separate major building sections or divide a large facility into smaller fire areas. For instance, a 3-hour door is required in a 4-hour firewall separating a large warehouse from the main office building.

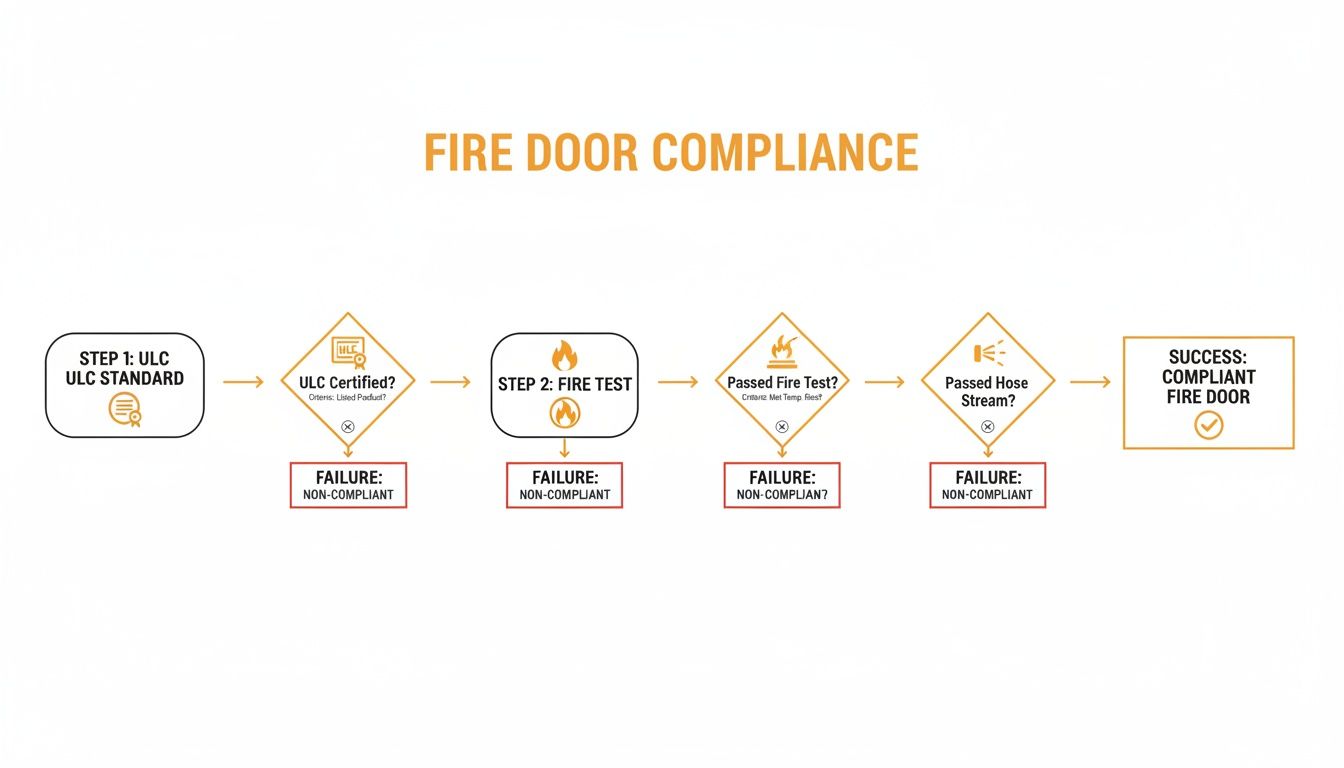

This infographic simplifies the journey to a fully compliant, certified fire door.
Alt text: A flowchart explaining the fire door compliance process, from ULC standards and fire testing to a final compliant fire door installation.
As the chart illustrates, a door's rating is earned through a rigorous process of meeting ULC standards, passing fire tests, and surviving the high-pressure hose stream test. This sequence guarantees performance when it counts.
For quick reference, here’s a table to help you match door ratings to common locations.
Fire Door Rating Selection Guide by Location
| Wall Fire Resistance Rating | Required Door Rating | Common Application Example |
|---|---|---|
| 1 Hour | 20-Minute | Corridor door to an office or hotel room. |
| 1 Hour | 45- or 60-Minute | Stairwell enclosures, separation between different tenant spaces. |
| 2 Hours | 90-Minute (1.5 Hours) | Stairwell doors in multi-story buildings, elevator shaft openings. |
| 3 or 4 Hours | 3-Hour (180-Minute) | Doors in walls separating major building sections or fire areas. |
While this table is a great starting point, always consult your building's fire safety plan and local codes to confirm specific requirements.
Real-World Application in Your Facility
Knowing the rules is one thing, but applying them is what truly matters. In Canada, the demand for compliant fire doors is growing, driven by commercial repairs and new infrastructure.
Key Takeaway: The required fire door rating is directly tied to the fire-resistance rating of the wall. A higher wall rating demands a higher door rating to maintain the integrity of the fire separation.
To ensure your facility is up to code, follow this practical checklist:
- Review Your Building Plans: Obtain the architectural drawings, which should clearly mark fire-rated walls and their ratings (e.g., 1-hour, 2-hour).
- Identify All Openings: Walk through your facility and identify every door, window, or pass-through located within these rated walls.
- Inspect the Labels: Check every fire door for its certification label. Does the rating on the label (e.g., 90-minute) meet the code requirement for the wall it’s in (e.g., a 2-hour stairwell wall)?
- Assess the Complete Assembly: The door is just one part. The frame, hinges, latch, and closer must also be rated and in good condition. A single non-compliant component compromises the entire assembly. Our guide on interior fire-rated door options offers a closer look at what a compliant setup includes.
If you discover a door in a rated wall without a label, or if the ratings don't match, you have identified a critical safety gap that needs immediate attention.
Your Inspection and Maintenance Responsibilities
A certified fire door with the highest fire door ratings is useless if it’s damaged, propped open, or unable to close and latch automatically during a fire. A fire door is an active life-safety device that demands regular attention.
As a building owner or facility manager, you have a legal obligation to ensure these systems are always in a state of readiness. This is not just a best practice—it is a mandatory requirement under NFPA 80, which calls for regular, documented inspections by a qualified professional.
Alt text: A certified inspector in a hard hat carefully checks a commercial fire door against a compliance checklist.
This responsibility goes beyond mere compliance. Proactive maintenance is a form of risk management. A deficient fire door is a major liability that can lead to catastrophic losses, significant fines, and potential denial of insurance claims.
What Inspectors Look for During an Annual Inspection
According to NFPA 80, fire door assemblies must be inspected at least annually. These inspections are comprehensive, following a strict checklist to verify that every component is present, functional, and in good repair.
A certified inspector will meticulously evaluate:
- Legible Labels: The certification labels on both the door and frame must be present and readable. A painted-over, damaged, or missing label is an automatic failure.
- No Visible Damage: The inspector will look for any damage to the door, frame, or hardware, such as dents, rust, or holes that could compromise its integrity.
- Proper Self-Closing and Latching: This is a critical functional test. The door must close completely and latch securely on its own from a fully open position. A door that fails to latch offers no protection.
- No Unapproved Modifications: Inspectors are trained to identify unauthorized hardware, field-drilled holes, or any alterations not approved by the manufacturer. A non-rated kick plate added in the field can void the fire rating.
- Correct Clearances: The gaps around the door must be within the tight tolerances specified by NFPA 80, typically around 3-4mm. Excessive gaps allow smoke and flames to pass through.
"A fire door inspection is not a suggestion; it is a mandatory annual requirement under the National Fire Code. Failure to maintain records of these inspections can result in significant penalties and places building occupants at unnecessary risk."
The Role of Professional Testing and Maintenance
While visual checks are essential, certain types of fire doors—particularly the rolling or sliding doors common in warehouses and at loading docks—require functional testing. This is where a professional service provider is indispensable.
A certified fire door drop test simulates an emergency activation to ensure a rolling fire door closes completely at a safe, controlled speed when its fusible link melts or an alarm is triggered. This test is a mandatory part of the annual inspection for these doors. You can learn more about this critical procedure in our detailed guide on fire door drop testing.
Partnering with a certified provider like Wilcox Door Service ensures these complex tests are performed correctly and documented for your records. Our technicians have the expertise to identify potential failures before they become liabilities, performing the necessary adjustments and repairs to keep your fire doors ready to protect.
Got Questions About Fire Door Ratings? We’ve Got Answers.
When it comes to fire door ratings, the details matter. Getting them right is fundamental to the safety of your people and the compliance of your facility. Here are clear, practical answers to some of the most common questions we hear from facility managers.
Can I Modify or Paint a Fire-Rated Door?
This is a frequent question, and the answer requires caution. Any modification to a fire door assembly, if performed incorrectly, can instantly void its certification.
Actions like drilling new holes for hardware, altering clearances, or adding a non-rated window are strictly forbidden, as they create weak points that fire can exploit. Painting is generally acceptable, but the paint cannot be so thick that it impedes the door from closing and latching properly. Most importantly, the certification label must never be painted over, obscured, or removed.
Think of a fire door's rating as a fragile seal. Any significant repair or modification must be done by a certified technician who follows the strict guidelines of NFPA 80. That's the only way to make changes while officially preserving the door's fire rating. Before you do anything, always call a professional.
What’s the Difference Between a Fire Door and an Exit Door?
These terms are often confused, but they describe different functions. A door can be a fire door, an exit door, or both.
- A fire door is part of a passive fire protection system. Its primary job is containment—to compartmentalize a building and stop the spread of fire and smoke for a specified time.
- An exit door is part of a designated escape route (a "means of egress"). Its primary job is escape.
A stairwell door is a perfect example of a door serving both roles. It requires a high fire rating (e.g., 90 minutes) to keep the escape route clear of smoke and fire, while also functioning as an exit door. In contrast, the final door leading outside from the stairwell may not need a fire rating, but it will have strict requirements for panic hardware to allow for rapid evacuation.
How Do I Know if My Fire Doors Are Compliant in Canada?
Ensuring compliance is more than a quick visual check. In Canada, true compliance means every component of the assembly—door, frame, and hardware—meets national and local fire codes.
Use this quick checklist to get started:
- Look for the ULC Label: Every fire-rated door and frame must have a legible label from Underwriters Laboratories of Canada (ULC). This mark is your proof of certification.
- Check the Whole System: Remember, the rating applies to the entire assembly. The frame, hinges, latch, and closer must all be rated and function correctly together.
- Schedule an Annual Inspection: Both NFPA 80 and the National Fire Code of Canada mandate annual inspections by a qualified professional. This is the most reliable way to confirm compliance and obtain official documentation.
A certified inspection will identify deficiencies, provide a formal record for the fire marshal, and outline a clear plan for any necessary code-compliant fire door repairs.
What Happens if My Fire Doors Aren’t Compliant?
Ignoring fire door compliance is a significant risk with severe consequences. The most critical impact is on human safety. A door that fails can allow fire and smoke to spread rapidly, leading to injury, catastrophic property damage, or worse.
Beyond the human cost, the legal and financial penalties are substantial. Building owners can face:
- Hefty Fines: The local Authority Having Jurisdiction (AHJ), such as the fire marshal, can issue significant fines for each non-compliant door.
- Serious Legal Liability: In the event of a fire, if neglected fire doors are found to have contributed to damage or injuries, the building owner can be held legally responsible.
- Denied Insurance Claims: An insurer can rightfully deny a claim if it discovers that non-compliant fire doors exacerbated the loss.
- Forced Shutdowns: In severe cases, a fire marshal has the authority to order a facility to close until all life-safety violations are corrected.
Proactive maintenance and regular inspections aren't just about following rules—they are essential business practices that protect your people, your property, and your bottom line. Respected partners know that reliable service starts with unwavering safety compliance.
